Vemic
Dolce Vita
Intro

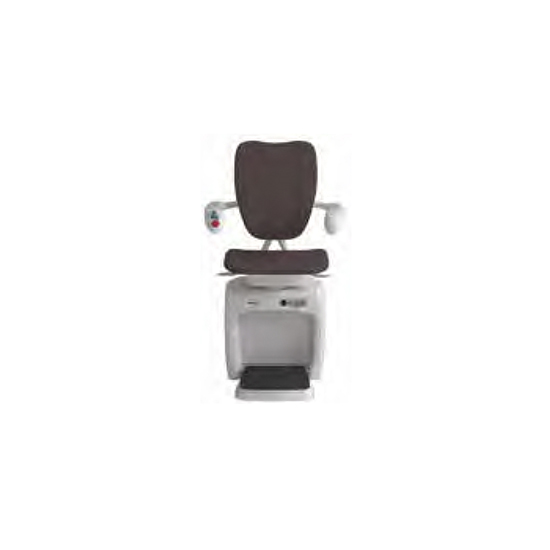

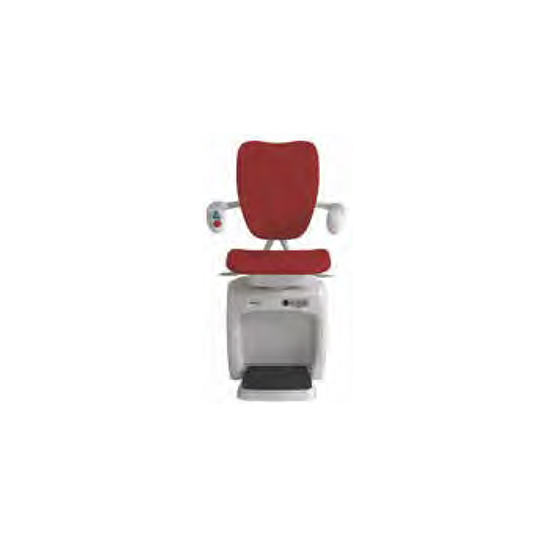

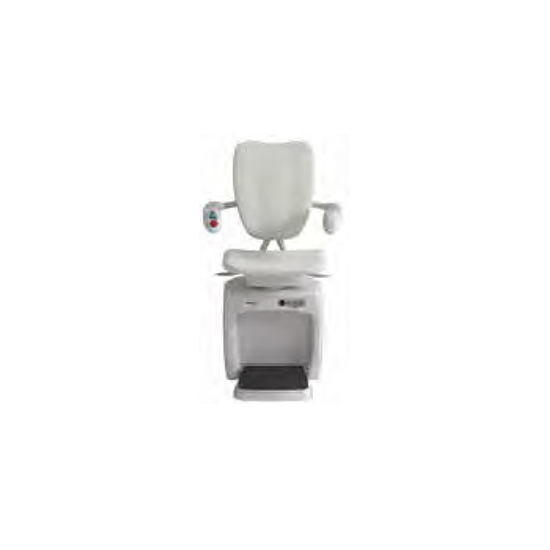

The Dolce Vita chairlift is always tailor made, with a precise design to suit for your staircase and your needs.
Product Information
Power Supply
230 VAC
Speed
0.15 M/S (MAX.)
Duration of use
15 laps every 24 hours - 10 continuous laps

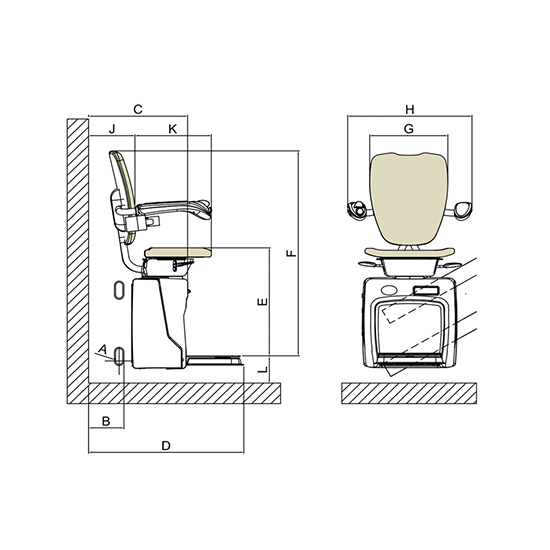

| A | Dimensions of the guide, width/height | 30 MM/50 MM |
| B | Distance of the outer side of the scale | 130 MM |
| C | Machine dimensions with the platform closed | 445 MM |
| D | Machine dimensions with the platform open | 720 MM |
| E | Distance between the platform and the sea | 530 MM |
| F | Distance between the platform and the upper part of the backrest | 1.080 MM |
| G | Backrest width | 380 MM |
| H | Distance between armrests (externally) | 600 MM |
| J | Distance between the backrest and the wall | 195 MM |
| K | Seat depth | 365 MM |
| L | Distance between the upper part of the platform to the floor | 90 MM |
